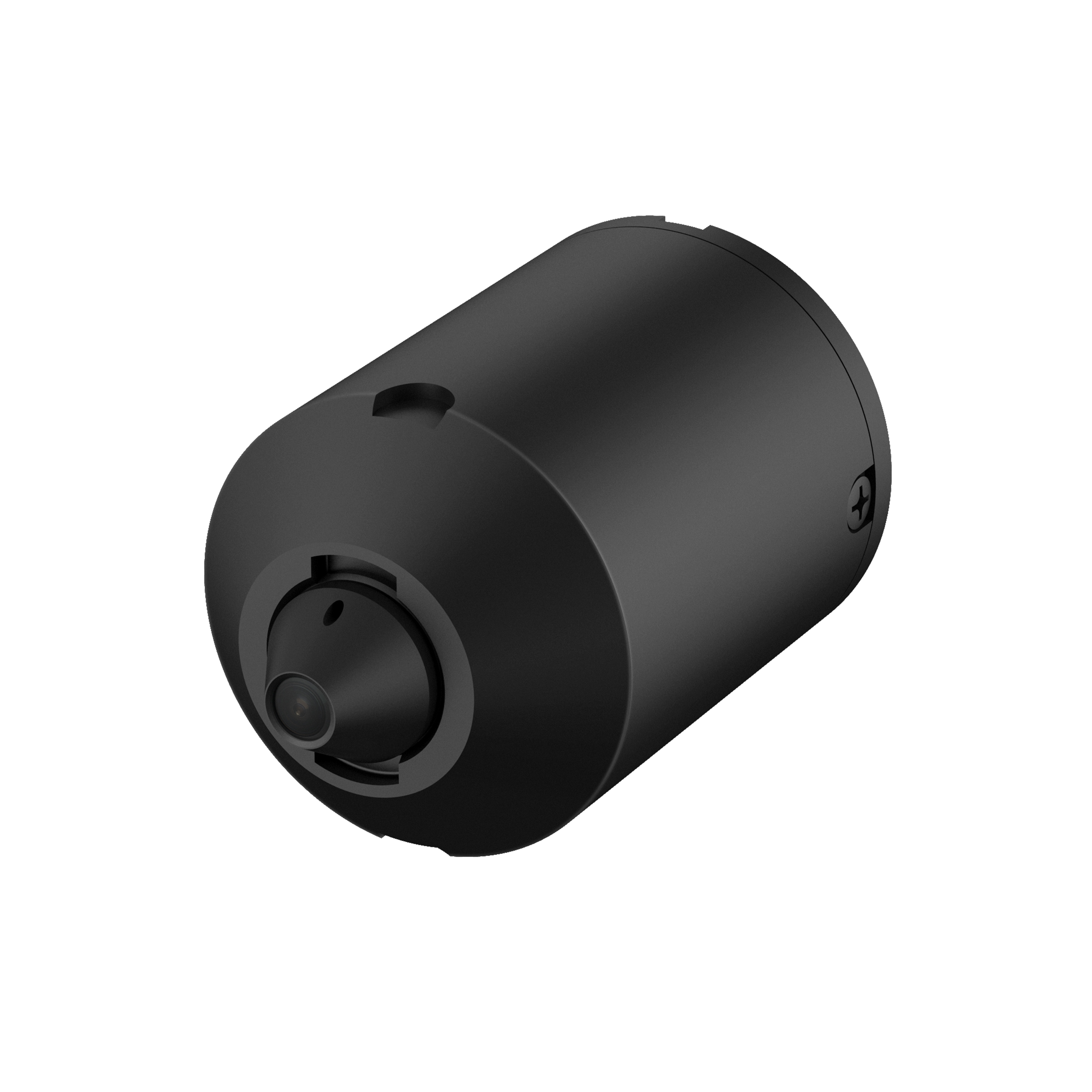

IPC-HUM8231-L1

2MP Covert Pinhole Network Camera-Lens Unit

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> Day/Night(Electronic), WDR
> 2.8mm Fixed Pinhole Lens
> 8-meters cable
> Require a Main Box to work together

Yülkleme Dosyaları

Class Date Title Language Type Download
Datasheet 2017-11-10 IPC-HUM8231-L1_Datasheet _20171109 English pdf



Class Date Title Language Type Download
User Manual 2017-09-15 IPC-HUM8231-L1_Operation_Manual English pdf
User Manual 2017-07-19 IPC-HUM8231-L1_QuickStartGuide English pdf
Class Date Title Language Type Download
Drawings 2017-09-15 IPC-HUM8231-L1_Installation English pdf
Drawings 2017-09-15 IPC-HUM8231-L1_Dimension English pdf
Class Date Title Language Type Download
A&E Document 2017-11-10 DH-A_E_Specification_Camera_2MP__Pinhole_IPC_HUM8231_L1_v001_001 English docx
A&E Document 2017-11-10 DH-A_E_Specification_Camera_2MP__Pinhole_IPC_HUM8231_L1_v001_001 English pdf
Title Remark Release notes Download
Images 2017-09-15 IPC-HUM8231-L1

Teknik Özellikler

Camera
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Scanning System Progressive
Effective Pixels 1920(H)x1080(V)
Minimum Illumination 0.02Lux/F2.4 (Color,1/3s,30IRE)

0.08Lux/F2.4 (Color,1/30s,30IRE)

0.01Lux/F2.4 (B/W,1/3s,30IRE)

0.04Lux/F2.4 (B/W,1/30s,30IRE)

IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm
Max. Aperture F2.4
Angle of View H:104° ,V:59°
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
DORI Distance Detect Observe Recognize Identify
38m(126ft) 15m(50ft) 8m(25ft) 4m(12ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range N/A
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ30.5mm×48.65mm(Φ1.20”×1.91”)
Net Weight 0.40Kg (0.88lb)
Gross Weight 0.47Kg (1.03lb)
