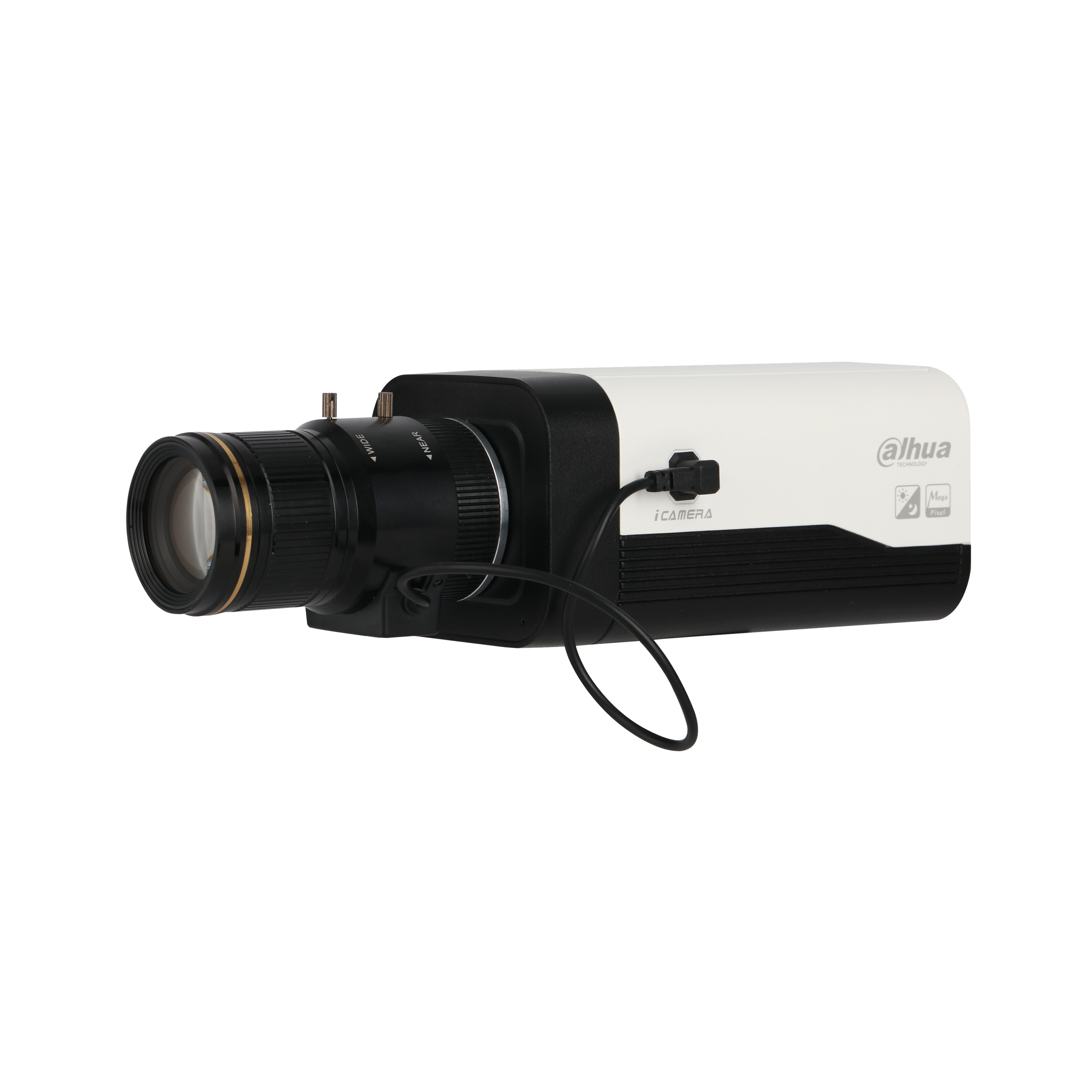

IPC-HF8242F-FD

2MP Starlight Face Detection Box Network Camera

> 1/1.9” 2Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Auto back focus(ABF)
> Micro SD memory, PoE
> Face Detection: built-in deep learning algorithm, support face images capture and facial attributes analysis

Kategoriler: , ,

Teknik Özellikler

Camera
Image Sensor 1/1.9” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
RAM/ROM 2048MB/4096MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.001Lux/F1.2(Color,1/3s,30IRE)

0.01Lux/F1.2(Color,1/30s,30IRE)

0.0005Lux/F1.2(B/W,1/3s,30IRE)

0.005Lux/F1.2(B/W,1/30s,30IRE)
S/N Ratio More than 50dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Lens Type N/A
Mount Type C/CS
Focal Length N/A
Max. Aperture N/A
Angle of View N/A
Optical Zoom N/A
Focus Control N/A
Close Focus Distance N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range N/A
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection: Support 6 kinds of facial features extraction: Age, Gender, Expression(Jolly, Calm, Surprise, Sad, Rage), Glasses, Mask, Moustache;

People Counting, Heat Map
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)
Frame Rate Main Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~50/60fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~ 10240Kbps

H.265: 14~ 6144Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)/ SSA
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) Support
Smart IR N/A
Defog Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B
Interface
Video Interface 1 port(BNC,1Vp-p,75Ω )
Audio Interface 2/1 channel In/Out, 1 Built-in Mic
RS485 1 port
Alarm 2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply DC12V, AC24V, PoE(802.3af)(Class 0)
Power Consumption < 10W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 161.6mm×85.5mm×74.0mm (6.36”×3.37”×2.91”)
Net Weight 0.78Kg (1.72lb)
Gross Weight 0.92Kg (2.03lb)
