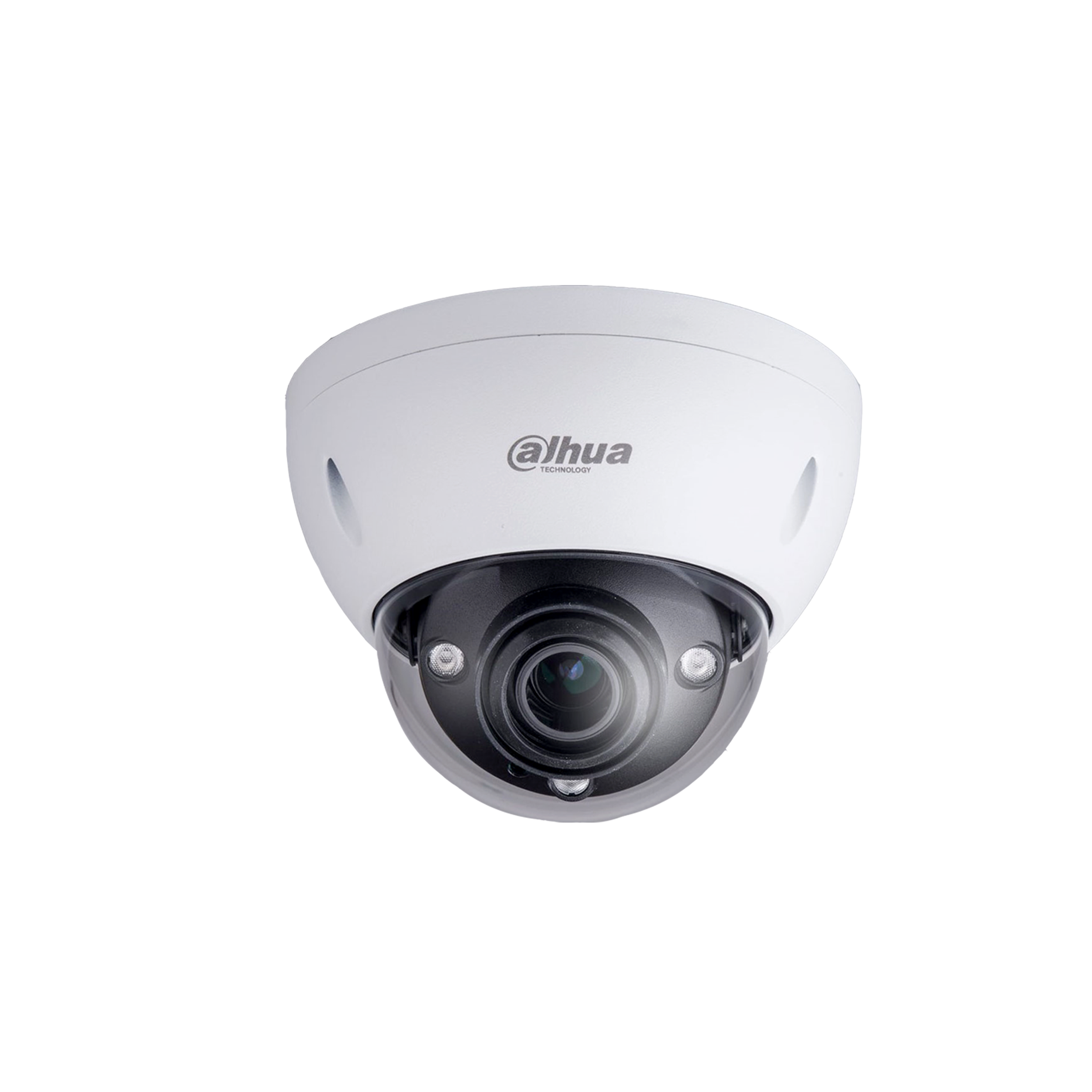

IPC-HDBW8630E-Z

6MP IR Dome Network Camera

> 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@6M(3072×2048)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE+

Kategoriler: , ,

Teknik Özellikler

Camera
Image Sensor 1/1.8” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H)x2048(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.01Lux/F1.53(Color,1/3s,30IRE)

0.1Lux/F1.53(Color,1/30s,30IRE)

0Lux/F1.53(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m(164ft)
IR On/Off Control Auto/ Manual
IR LEDs 3
Lens
Lens Type Motorized /Auto Iris(HALL)
Mount Type Board-in
Focal Length 4.1~16.4mm motorized
Max. Aperture F1.53
Angle of View H: 107˚~35 ˚ V:60 ˚ ~25˚
Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 1m(3.28ft)
DORI Distance Lens Detect Observe Recognize Identify
W 88m(289ft) 35m(115ft) 18m(59ft) 9m(30ft)
T 213m(699ft) 85m(279ft) 43m(141ft) 21m(69ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection, People Counting, Heat Map
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 6M(3072×2048)/ 5M(2560×1920)/3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)D1(704×576/ 704×480) / VGA(640×480)/ CIF(352×288/342×240)
Frame Rate Main Stream: 6M(1~25/30fps)
Sub Stream: D1 (1 ~ 25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~ 16384Kbps H.265: 14~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR/ SSA
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) Support
Smart IR Support
Defog Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B
Interface
Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 1 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply DC12V,AC24V, PoE+(802.3at)(Class 4)
Power Consumption <18W
Environmental
Operating Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ159.1mm×117.9mm(Φ6.26”×4.64”)
Net Weight 0.96kg(2.12lb)
Gross Weight 1.75 kg(3.56lb)
