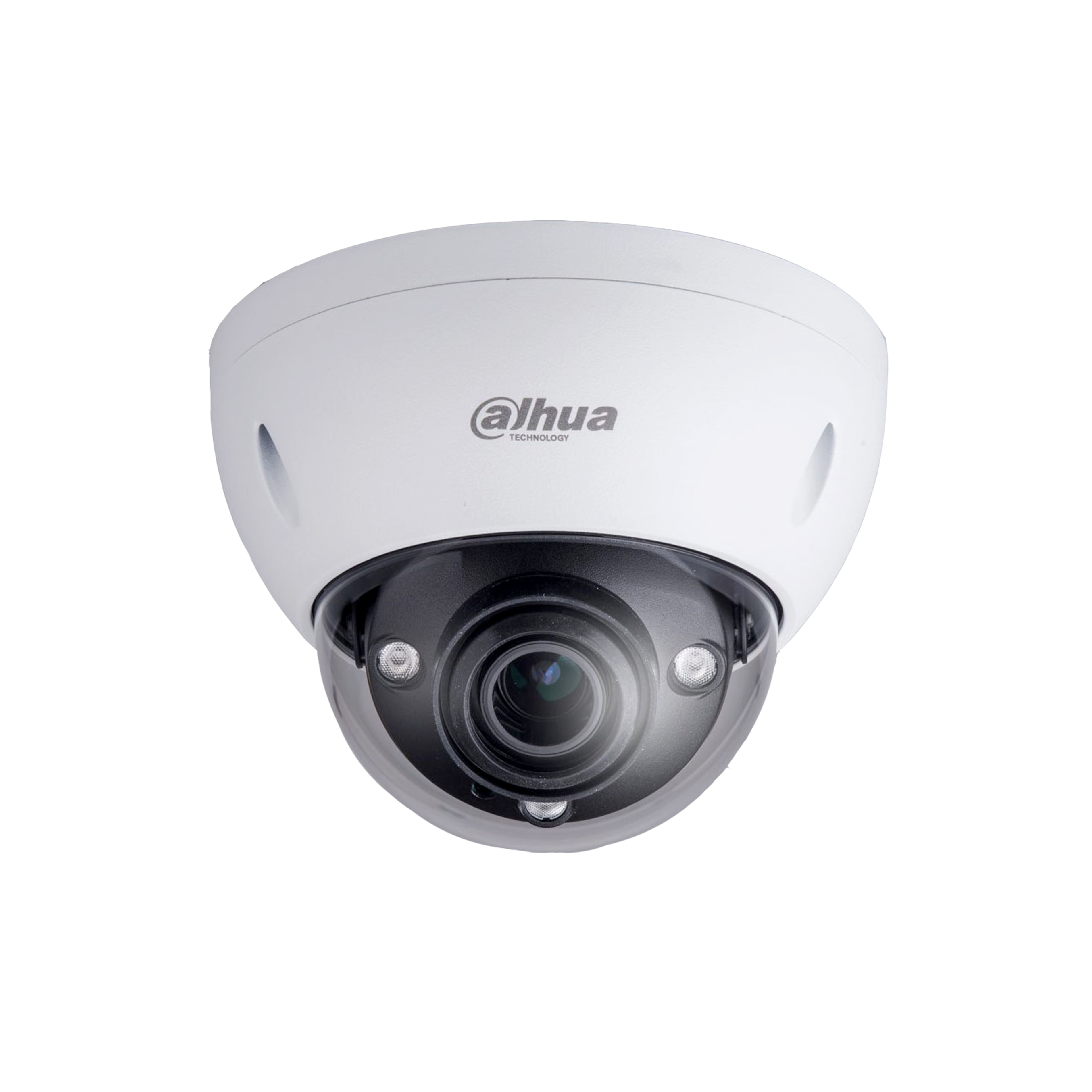

IPC-HDBW5831E-ZE

8MP WDR IR Dome Network Camera

> 1/2.5” 8Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 dual-stream encoding
> 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~12mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD card memory, IP67,IK10, PoE+

Yükleme Dosyaları

Class Date Title Language Type Download
Datasheet 2017-07-07 DH-IPC-HDBW5831E-ZE_Datasheet_20170630 English pdf
Class Date Title Language Type Download
User Manual 2017-07-07 DH-IPC-HDBW5831E-ZE_Operation_Manual _20170630 English pdf
User Manual 2017-07-07 DH-IPC-HDBW5831E-ZE_QuickStartGuide _20170630 English pdf
Class Date Title Language Type Download
Drawings 2017-07-07 DH-IPC-HDBW5831E-ZE_Dimension_20170704 English pdf
Drawings 2017-07-07 DH-IPC-HDBW5831E-ZE_Installation _20170704 English pdf
Class Date Title Language Type Download
A&E Document 2018-02-08 DH-A_E_Specification_Camera_8MP__Dome_DH_IPC_HDBW5831E_ZE_v001_001 English docx
A&E Document 2018-02-08 DH-A_E_Specification_Camera_8MP__Dome_DH_IPC_HDBW5831E_ZE_v001_001 English pdf
Title Remark Release notes Download
Images 2017-07-07 IPC-HDBW5831E-ZE
Title Remark Release notes
[PAL]DH_IPC-HX5X3X-Rhea_Eng_P_Stream3_V2.460.0000000.16.R.20170904


[NTSC]DH_IPC-HX5X3X-Rhea_EngSpnFrn_N_Stream3_V2.460.0000000.16.R.20170904



Teknik Özellikler

Camera
Image Sensor 1/2.5” 8Megapixel progressive scan CMOS
Effective Pixels 3840(H)x2160(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.05Lux/F1.4 (Color,1/3s,30IRE)

0.2Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 3
Lens
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in
Focal Length 2.7mm~12mm
Max. Aperture F1.4
Angle of View H:110°~40° , V:58°~23°
Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.3m
DORI Distance Lens Detect Observe Recognize Identify
W 85m(280ft) 34m(112ft) 17m(56ft) 8.5m(28ft)
T 228m(748ft) 91m(299ft 46m(151ft) 23m(75ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4K(3840×2160)/ 6M(3072×2048)/5M(3072×1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/

VGA(640×480)/ CIF(352×288/352×240)

Frame Rate Main Stream: 4K(1~15fps)/3M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical
Power Supply DC12V, AC24V, PoE+(802.3at)(Class 4)
Power Consumption <15W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ159.1mm×117.9mm (6.26”×4.64”)
Net Weight 0.95kg (2.09lb)
Gross Weight 1.20kg (2.65lb)
