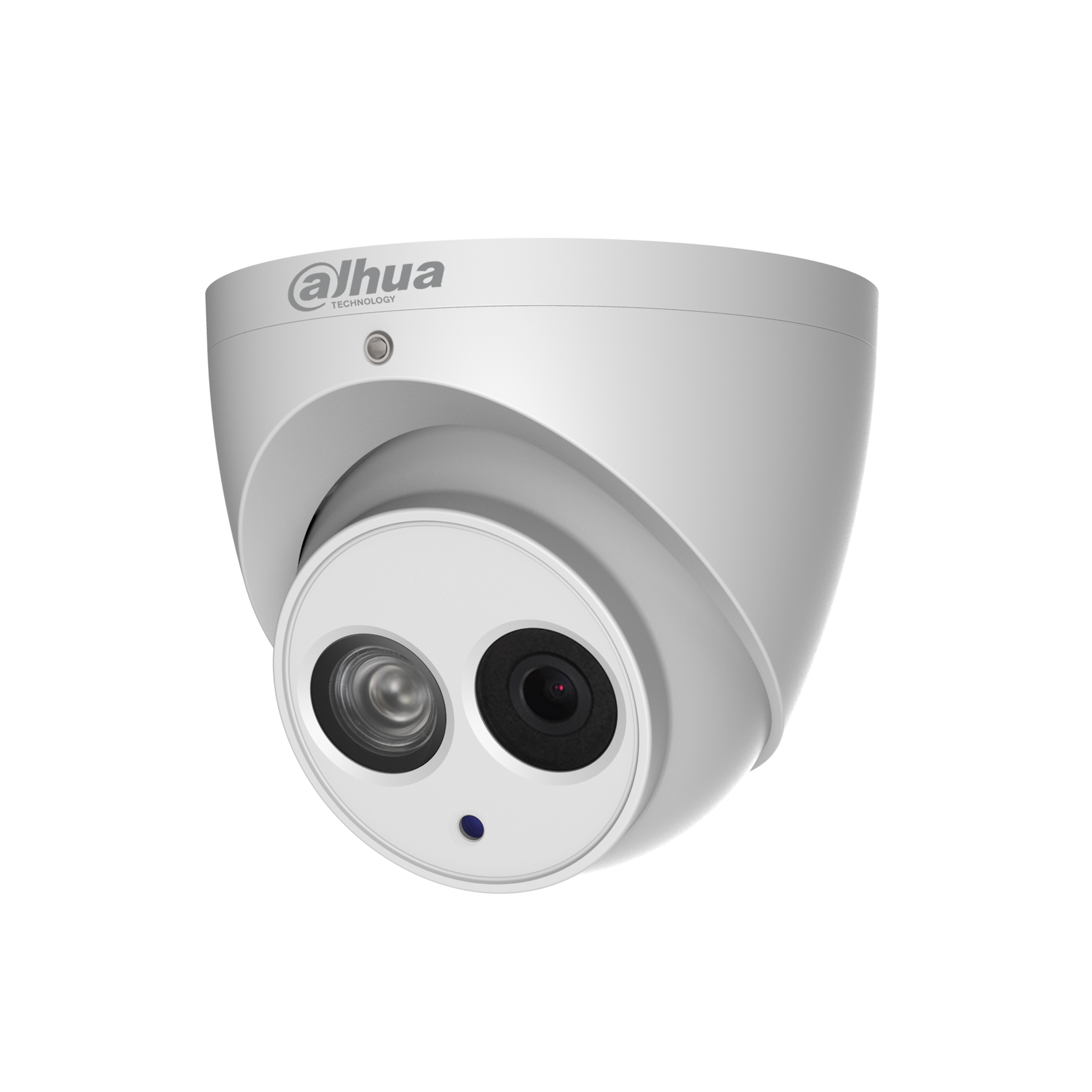

2MP IR Mini Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm, 6mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE

Yükleme Dosyaları

Class Date Title Language Type Download
Datasheet 2017-10-19 DH-IPC-HDW4631EMASE_datasheet_20170704 English pdf
Class Date Title Language Type Download
User Manual 2017-07-19 DH-IPC-HDW4631EM-ASE_Operation_Manual _20170626 English pdf
User Manual 2017-07-19 DH-IPC-HDW4631EM-ASE_QuickStartGuide _20170626 English pdf
  • Class Date Title Language Type Download
    Drawings 2017-07-07 DH-IPC-HDW4631EM-ASE_Dimension _20170626 English pdf
    Drawings 2017-07-07 DH-IPC-HDW4631EM-ASE_Installation _20170626 English pdf
  • Class Date Title Language Type Download
    A&E Document 2018-02-08 IPC – A_E_Specification_Camera_6MP__IR Eyeball_DH_IPC_HDW4631EM-ASE_v001_001 English docx
    A&E Document 2018-02-08 IPC – A_E_Specification_Camera_6MP__IR Eyeball_DH_IPC_HDW4631EM-ASE_v001_001 English pdf
  • Title Remark Release notes Download
    Images 2017-07-07 IPC-HDW4631EM-ASE
Title Remark Release notes Download

Teknik Özellikler

Image Sensor 1/1.9” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
RAM/ROM 2048MB/4096MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.001Lux/F1.2(Color,1/3s,30IRE)




S/N Ratio More than 50dB
IR Distance N/A
IR On/Off Control N/A
Lens Type N/A
Mount Type C/CS
Focal Length N/A
Max. Aperture N/A
Angle of View N/A
Optical Zoom N/A
Focus Control N/A
Close Focus Distance N/A
Pan/Tilt/Rotation Range N/A
Artificial Intelligence
Face Caputure Support face image caputure
Face Attributes Support 6 kinds of face attributes extraction: Age, Gender, Expression(Jolly, Calm, Surprise, Sad, Rage), Glasses, Mouth Mask, Moustache
General Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence Tripwire, Intrusion, Object Abandoned/Missing, People Counting, Heat Map
Compression H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)
Frame Rate Main Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~50/60fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~ 10240Kbps

H.265: 14~ 6144Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)/ SSA
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) Support
Smart IR N/A
Defog Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Compression G.711a/ G.711Mu/ AAC/ G.726
Ethernet RJ-45 (100/1000Base-T)


NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE (EN 60950:2000)


FCC: FCC Part 15 Subpart B

Video Interface 1 port(BNC,1Vp-p,75Ω )
Audio Interface 2/1 channel In/Out, 1 Built-in Mic
RS485 1 port
Alarm 2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Power Out 165mA 12VDC
Power Supply DC12V, AC24V, PoE(802.3af)(Class 0)
Power Consumption < 10W
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Casing Metal
Dimensions 161.6mm×85.5mm×74.0mm (6.36”×3.37”×2.91”)
Net Weight 0.78Kg (1.72lb)
Gross Weight 0.92Kg (2.03lb)
